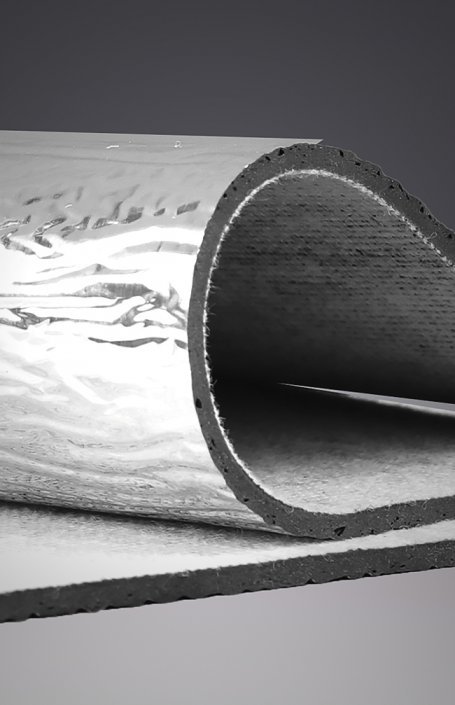

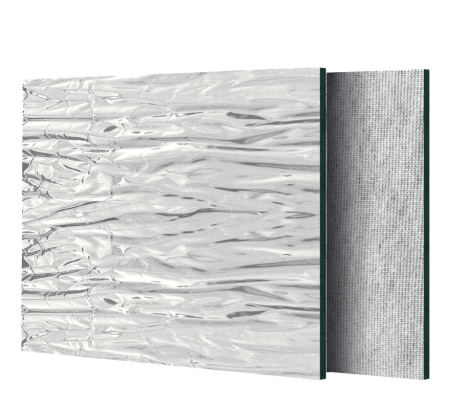

Quadzero NL

fire-resistant, foil faced flexible noise barrier

Quadzero™ NL is a high performance foil faced mass-loaded vinyl noise barrier offering superior acoustic transmission loss and upgraded fire resistance.

With a fire-resistant foil facing, Quadzero™ NL was developed by Pyrotek to meet stringent fire safety requirements in the marine, building and transport sectors. The product achieves the highest fire ratings complying with International Marine Organisation standards for low spread of flame, as well as British, German, American and Australian building and transportation standards for heat release, toxicity and flame propagation properties.

The upgraded fire safety provided by Quadzero™ NL is offered without reducing the strength, tear resistance or flexibility offered by the Wavebar® Quadzero™ product range.

Stiff lightweight panel constructions, such as plasterboard, drywall, plywood and hollow core doors, typically have coincidence dip resonance which allows noise to transmit through a construction. The coincidence dip is dependent on the material’s stiffness and thickness and occurs at the point where the sound transmitted through the structure matches the natural frequency of the panel. Quadzero™ NL shifts the coincidence dip to frequencies limiting its impact, thereby maintaining the performance of the product. The thin, dense mass barrier reflects and absorbs the transmission of sound through walls, ceilings and floors, reducing the critical frequencies generated from mechanical equipment, engine noise and electronic devices.

Quadzero™ NL contains no ozone depleting substances and complies with European and Australian standards for Volatile Organic Compounds emissions.

Engineered to comply with stringent international fire testing codes

Engineered to comply with stringent international fire testing codes

Technical data

Quadzero™ NL is a high-performance foil faced mass-loaded vinyl noise barrier, offering superior acoustic transmission loss and upgraded fire resistance.

Please refer to the Technical Data Sheet (TDS) for more information.

Document downloads

Document title Document type Document language
QUADZERO-NL-TDS-322IP Technical Data Sheet English
QUADZERO-NL-TDS-US322IP Technical Data Sheet English
QUADZERO-NL-TDS-JAPAN Technical Data Sheet 日本語 (Japanese)
QUADZERO-NL-TDS-322IP-ZH Technical Data Sheet 中文 (Chinese)
QUADZERO-NL-322IG Installation Guide English
Wavebar and Quadzero Range Brochure English
Marine Summary Brochure English
Offshore Marine Brochure English
Spirit of the Wild Case Study English
Pyrotek Building Catalogue Catalogues English


  • Inside cavities or over lightweight wall, ceiling and floor constructions
  • Applied in marine engine rooms & deck heads to reduce noise transmission
  • Rail carriages for under floor insulation to reduce track and brake noise
  • Designed around the outside of metal air ducts to reduce noise breaking out
  • Wrapped around noisy pipes, i.e. fluid or gas pulsation in chemical, petrochemical and waste water treatment plants


  • Contains no ozone depleting substances
  • Free from lead, unrefined odour-producing oils and bitumen
  • Complies to IMO FTP 2010 - low spread of flame
  • Multiple methods of installation accepted by USA Coast Guard (USCG)
  • Complies to BS476.6 and 7 - Class 0
  • Easy to cut, tape and mechanically fasten into position
  • Self extinguishes upon removal of flame
  • Resistant to water, oil and natural weather conditions
  • Tear resistant with high tensile strength. Ability suspend in lengths of up to 5 metres
