Install Pins

insulation pins - mechanical fixing of insulation

Install Pins are used to mechanically fix and install insulation material that can be pierced by metal spindles.

Install Pins, also referred as ‘hanger pins’ or Insulation Pins, are either stud-weldable, or designed to be bonded with adhesive for non-welded systems. Non-weldable pins are designed with the spindle mounted to a solid metal base.

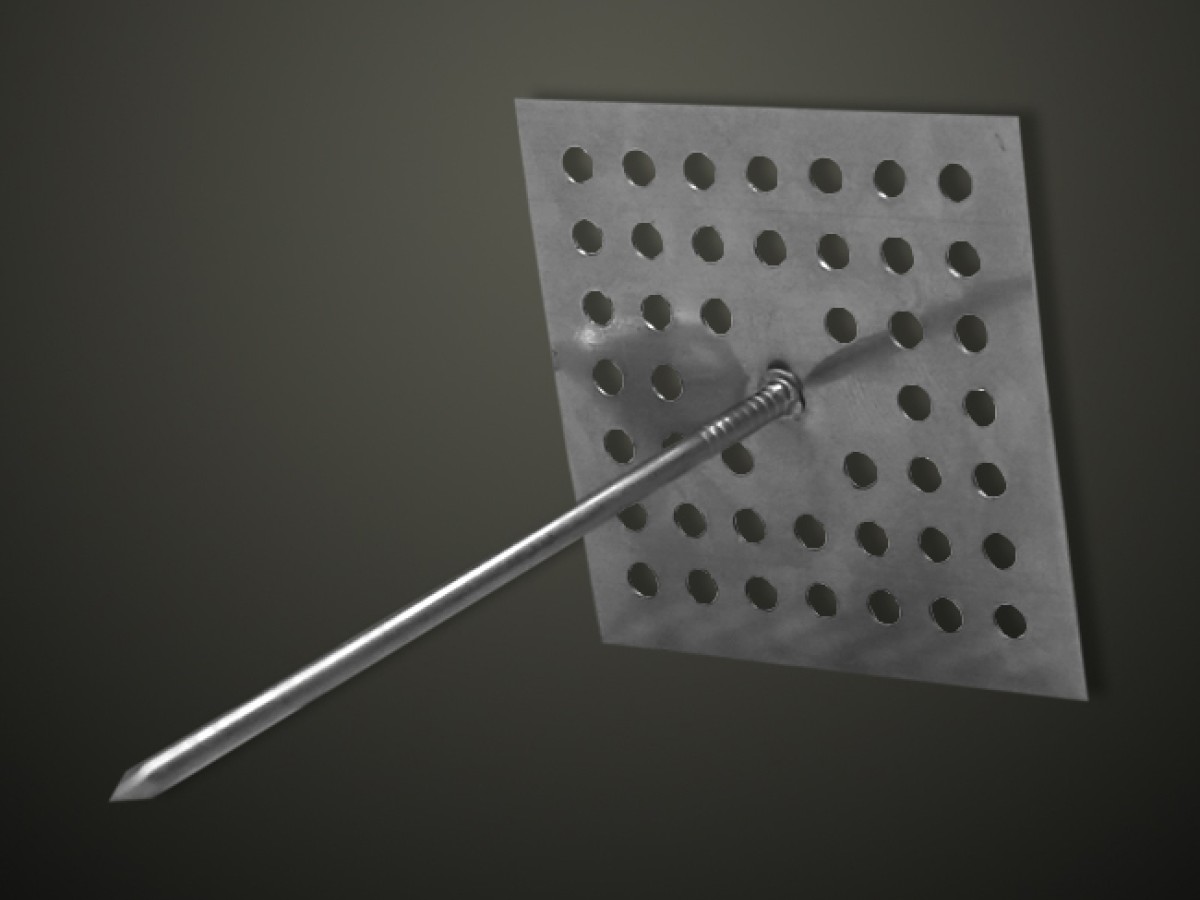

The metal base is available with a ready-to-use ‘peel and stick’ backing, or a perforated base to be bonded with suitable adhesive. A self-locking washer (clip or dome) is applied over the protruding spindle to retain the insulation.

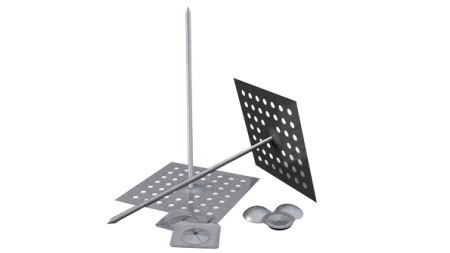

Pyrotek® supplies a variety of pins and self-locking washers that are available in a range of metals such as stainless steel, galvanised steel, aluminium and nylon to suit various surfaces and different fixing methods.

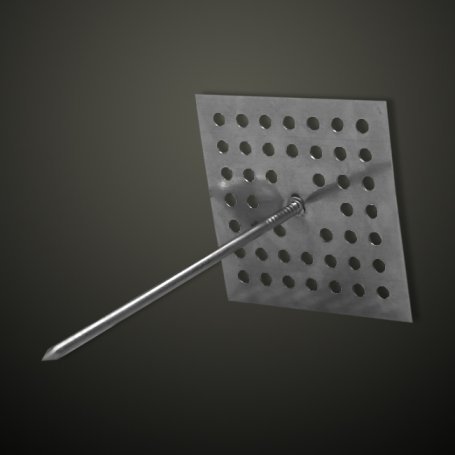

Install pin

Technical data

Insulation Pins are used to mechanically fix and install insulation material that can be pierced by metal spindles.

Please refer to the Technical Data Sheet (TDS) for more information.

Document downloads

Applications

Noise insulation attachment in:

  • Marine engine rooms
  • Bus and truck engine bays
  • Compressor enclosures
  • HVAC ducting
  • Buildings

Features

  • Can be used to retain any type of insulation (pierced by the pin)
  • Pins available for different fixing methods: welding (Includes bimetallic stud welding), self adhesive (pressure-sensitive adhesive), or using suitable adhesive
  • One type of pin can be used to hang multiple types of insulation
  • Simple and easy to apply
  • Reduced inventory needs
  • Available in stainless steel, galvanised steel, aluminium and nylon

Installation

Insulation pins are available for different fixing methods:

  • Weldable insulation pins
  • Applying adhesives
  • Self-adhesive

Self-locking washers, commonly referred to as speed clips, caps or domes, are used in conjunction with insulation pins to provide protection from the protruding spindle ends.

Refer to the installation guide for more information.

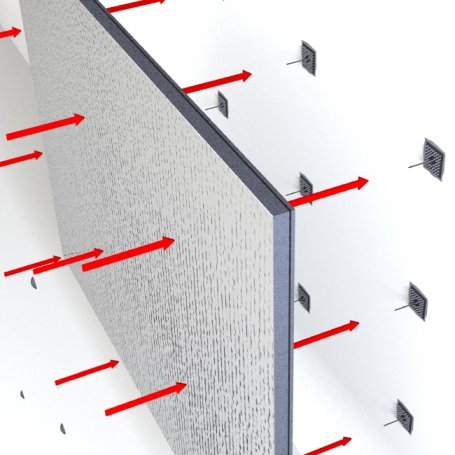

Adhesive fixing method
