Wavebar MIL

MIL-SPEC, flexible and fire-resistant noise barrier

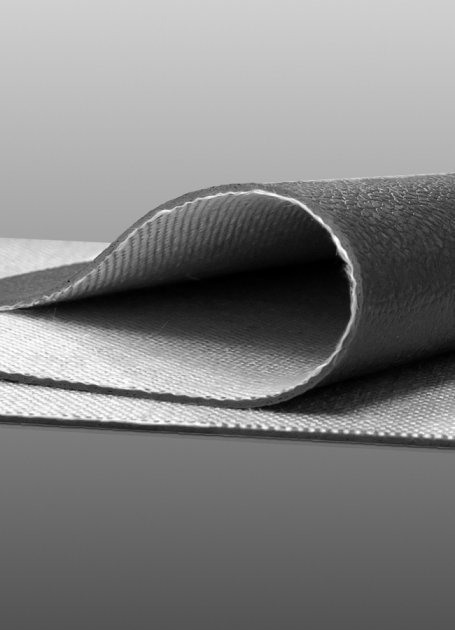

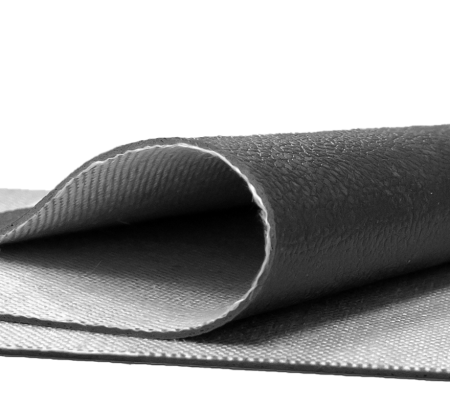

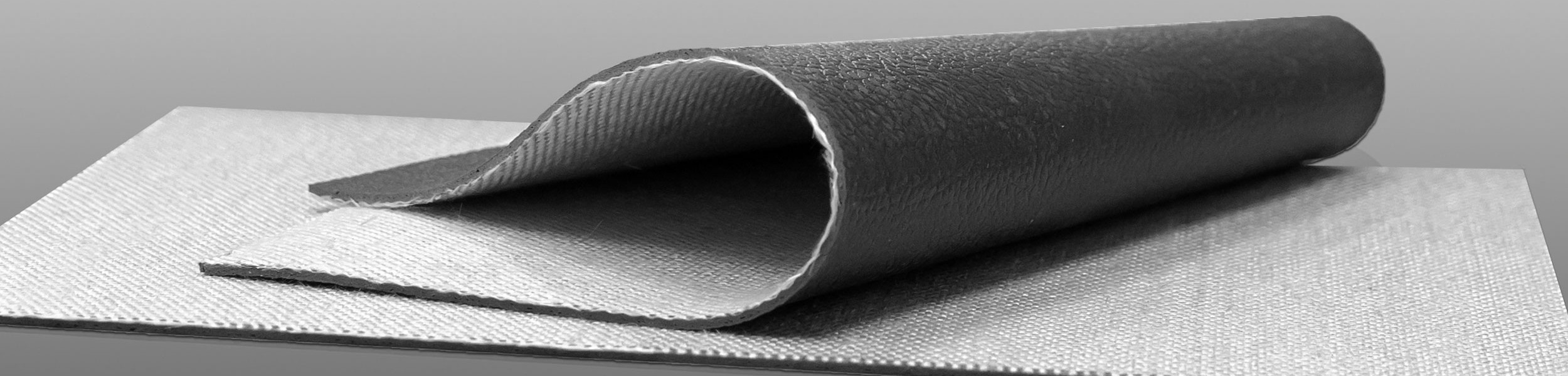

Wavebar® MIL is a high-performance, flexible mass-loaded vinyl noise barrier combined with fibreglass fabric. It was designed for the military and navy industry, conforming to MIL-PRF-24699A (SH).

Pyrotek developed a dense, thin, highly-flexible and tear-resistant noise barrier with excellent fire-resistance and thermal insulation. Wavebar MIL, designed with the original Wavebar soundproofing properties and added ‘flame shield’, is approved for use in military vehicles and navy ships.

Stiff and lightweight panel constructions such as light-gauge metals or rigid boards typically have coincidence dip resonance which allows noise to transmit through a construction. The coincidence dip is dependent on the material’s stiffness and thickness and occurs at the point where the sound transmitted through the structure matches the natural frequency of the panel. Wavebar® MIL shifts the coincidence dip to frequencies limiting its impact, thereby maintaining the performance of the product.

The dense mass layer reflects and absorbs the transmission of sound, reducing the critical frequencies generated from mechanical equipment, engine noise and electronic audio technologies.

Wavebar MIL is designed for military applications and navy ships.

Technical data

Wavebar MIL is a high-performance, flexible mass-loaded vinyl noise barrier for use in military applications and navy ships.

Please refer to the Technical Data Sheet (TDS) for more information.

Document downloads

Document title Document type Document language
Wavebar-Install-304-1IG Installation Guide English
WAVEBAR-MIL-TDS-311-2IP Technical Data Sheet English

Applications

  • Military vehicles
  • Machinery spaces, cavities and enclosures
  • Marine and navy bulkheads and deckheads
  • Isolate sound on doors for privacy
  • Position as a curtain to separate and create an acoustic barrier
  • Pipes and ducts

Features

  • Conforms to MIL-PRF-24699A (SH) - approved for use in military vehicles and navy ships
  • Excellent soundproofing and fire-resistance properties
  • Simple to cut and install through obstructions - providing flexibility around pipes, ducts, cables etc.
  • Resistant to most chemicals, solvents and petrol
  • Free from lead, odour-producing oils and bitumen
  • Resistant to weather and UV light
  • Tear resistant with high tensile strength - ability to be suspended in lengths of up to 16.4 ft (5 m)
  • Available in various weights, widths, roll lengths and sheet sizes
  • Available with various laminates such as foil, metallised film, foams and polyesters
