Single or double sided aluminium faced lightweight multilayered panel.

EN 45545 Certified EN 45545 Certified

aluminium faced damping barrier for rail and marine industry

Subdue SSAL / DSAL is a multilayered acoustic panel developed by Pyrotek to meet noise reduction requirements in the marine, commercial, and rail industry. The product is available with a single (SSAL) or double (DSAL) sided powdered coated aluminium facing for improved fire resistance.

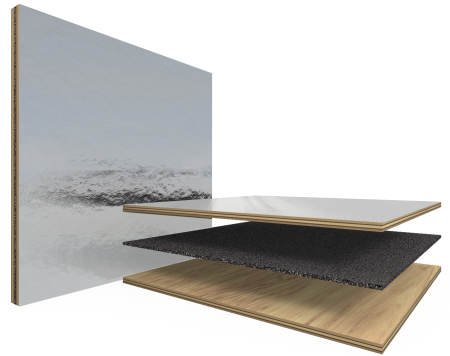

The unique panel system consists of two lightweight hardwood outer layers which sandwich a damped viscoelastic inner core, bonded with WBP (water boiled proof) adhesive. The aluminium layer is applied to the surface of the hardwood.
The viscoelastic core is made from a special polymer, developed to provide excellent damping properties that reduce structural vibration, resulting in lower airborne noise.

*EN 45545 Certification only applies to Subdue SSAL/DSAL

Applications

  • Flooring systems in the rail and motor coach industry to reduce road and track noise
  • Extensively specified for interior marine construction e.g. bulkheads, cabin partitions, floating floors
  • Floor, partition walls and lining panels
  • High quality speaker enclosures in audio industry
  • Fabrication of acoustic doors
  • Used in conjunction with an isolation mount to create floating wall, floor and ceiling systems

Features

  • Approved for rail use / meets ASTM E 162, E 662, E 800, and E 648
  • Lightweight, marine grade plywood, tested to BS1088 bonded using water resistant glues.
  • Tested to EN717-2 and AS/NZS 2098.11 for low Formaldehyde emission
  • Available in various constructions (offering weight savings) to suit different designs and acoustic requirements and configurations - aluminium facing
  • Superior damping properties over standard plywood and similar panels
  • High noise reduction properties
  • Low installation cost - easily cut, shaped, fabricated and installed
  • Available in preformed cut panels and cut kits
