Soundlag
Acoustic pipe lag for industrial, commercial and domestic buildings.
acoustic pipe and duct lagging
Soundlag® is a versatile high-performance composite acoustic lagging product, designed to effectively reduce noise from a variety of sources including pipes, valves, fan housings, and ductwork in commercial, industrial, and domestic buildings.
Soundlag® is the ultimate soundproofing solution for those seeking compliance with NCC (National Construction Code - formally Building Code of Australia) F5.6 requirements. With test results showing a significantly higher performance of up to 5 dB(A) compared to low-noise pipe products, Soundlag® is the clear choice for noise reduction.

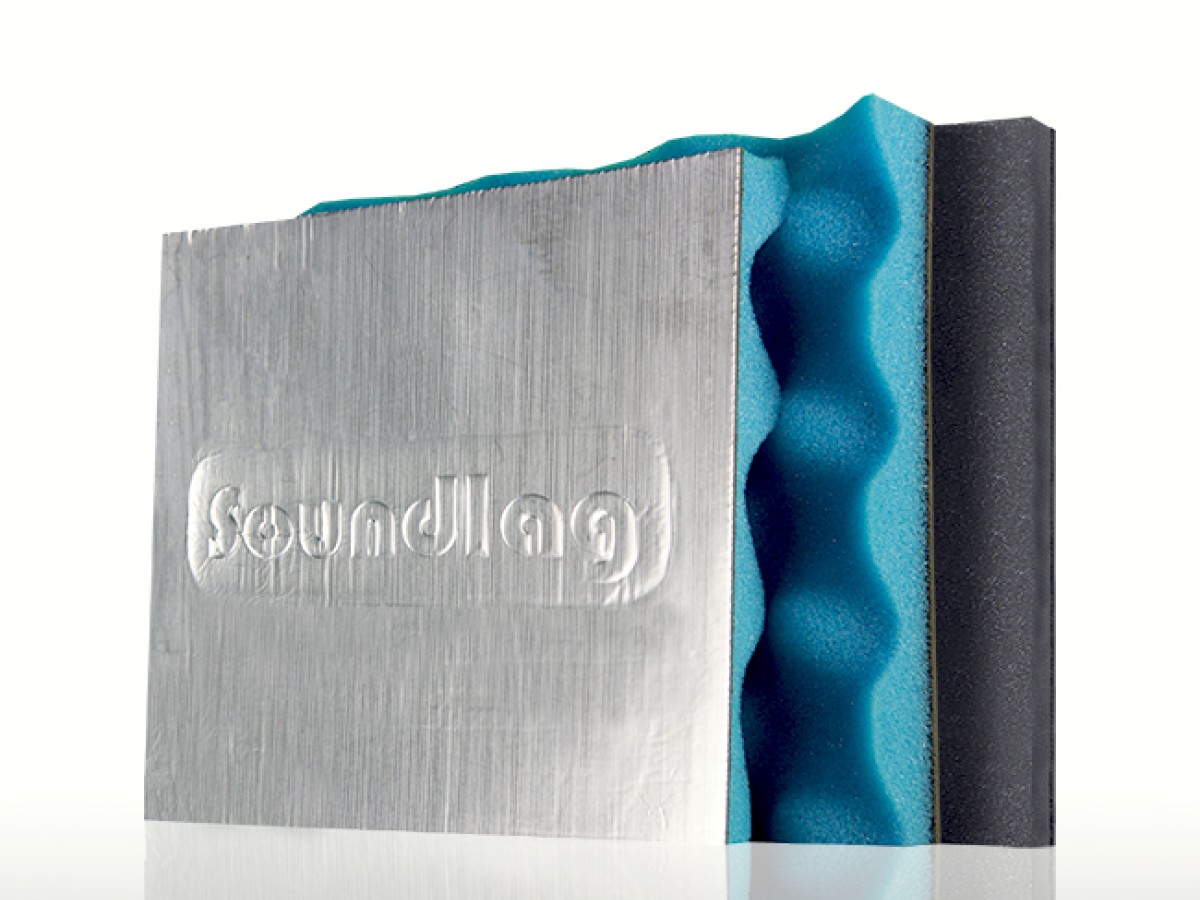

The highly dense and flexible mass layer provides excellent sound reduction properties, whilst the decoupling layer breaks the vibration path between the substrate and the barrier, allowing the vinyl external wrap to remain flexible – optimising performance. The external foil facing offers a fire-resistant covering and an excellent surface to join adjacent sheets.
Pyrotek® offers varying compositions with barrier weights from 3 kg/m² to 8 kg/m² and the decoupling layer with a choice of plain or convoluted foam, polyester, fibreglass, glass wool or quilted glass wool with thicknesses ranging from 6 mm to 50 mm.

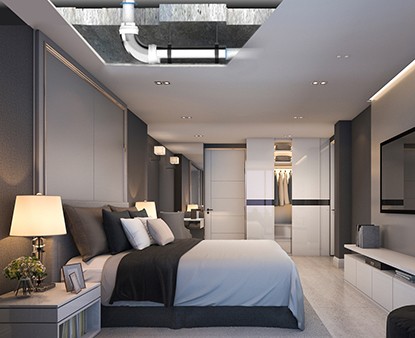

Black and white foil are alternative colour options to the reinforced aluminium facing. These anti-glare foil colours are suitable for exposed ceiling spaces.
Features

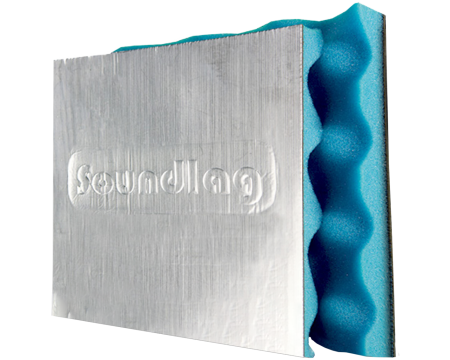

- Better performance - up to 5 dB(A) with Soundlag® 4525C compared to low noise pipe products without ceiling or areas with penetrations
- Free from odour producing oils and bitumen
- Contain no ozone depleting substances
- Accredited to ISO 9001 Quality Control Standard
- Tested to AS 1530.3 with excellent flame resistance
- Broad operating temperature range
- Reduces noise in hydraulic and waste pipes by up to
25.2 dB(A) (4525C) - Varying range of weights and thicknesses
- Choice of foam, polyester, fibreglass or glass wool
- Can cut to size and simple to install
- Easy to bond - matching Tape ALR or equivalent
- Endorsed by leading acoustic consultants and engineers
Installation
Soundlag® is easy and simple to install without specialist tools or trades.
HOW TO APPLY SOUNDLAG USING TAPE
- Tape ALR is easy to tear by hand.
- Remove the release liner backing
- Position tape centrally over the sections to be joined and firmly press along the entire tape surface.
- Wipe or rub with firm pressure across the tape with a cloth or blade to smooth out any air bubbles or buckles.
Do not over-stretch the tape when applying, as this will create buckles and voids in the contact area.

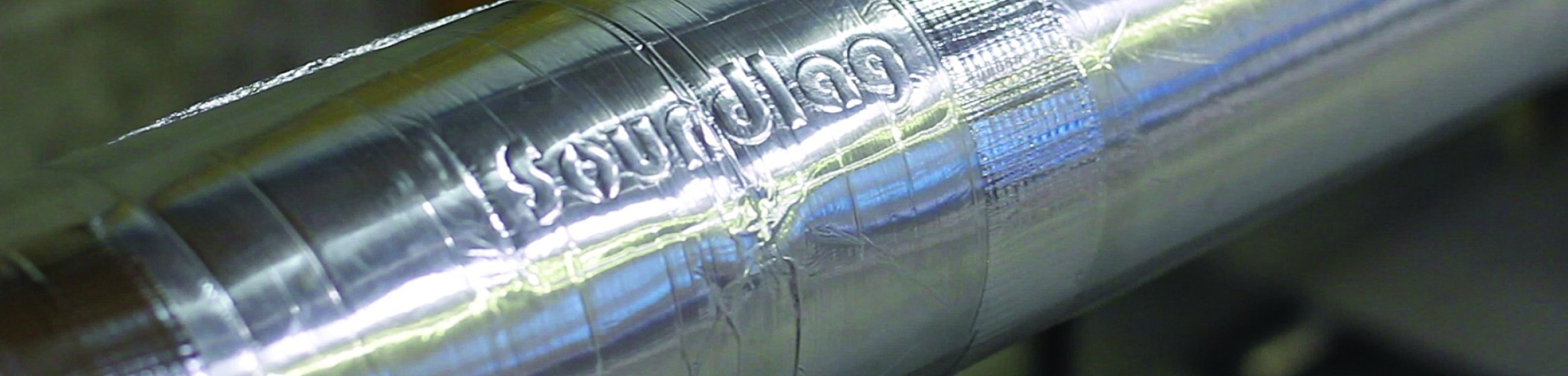

All joints along longitudinal pipe sections must be fitted with an overlap of adjoining segments. Overlapped sections must then be taped and sealed with ‘Tape ALR’ or equal. A strip of 30 mm foam can be removed along one or both edges as required to provide for an overlap at joints.
